DC ChargersDC Chargers

MaxiCharger Fully Modular

All-in-One Charger

Up to 97%
Charging Efficiency
Up to 600 kW
Charging Output
98% Uptime
Fully Modular Design

Ultimate Experience

  • Efficient Charging

  • Scalable Design

  • Easy Maintenance

In-house 50 kW air-cooled modules deliver over 97%* efficiency with reactive power compensation, ensuring reliable charging (DH240 efficiency: 96%).

Ultimate Experience

Efficient Charging

In-house 50 kW air-cooled modules deliver over 97%* efficiency with reactive power compensation, ensuring reliable charging (DH240 efficiency: 96%).

MaxiChargerMaxiCharger

Ultimate Experience

MaxiCharger
MaxiCharger
MaxiCharger
MaxiCharger
  • DH600

  • DH480

  • DH240

  • DH120

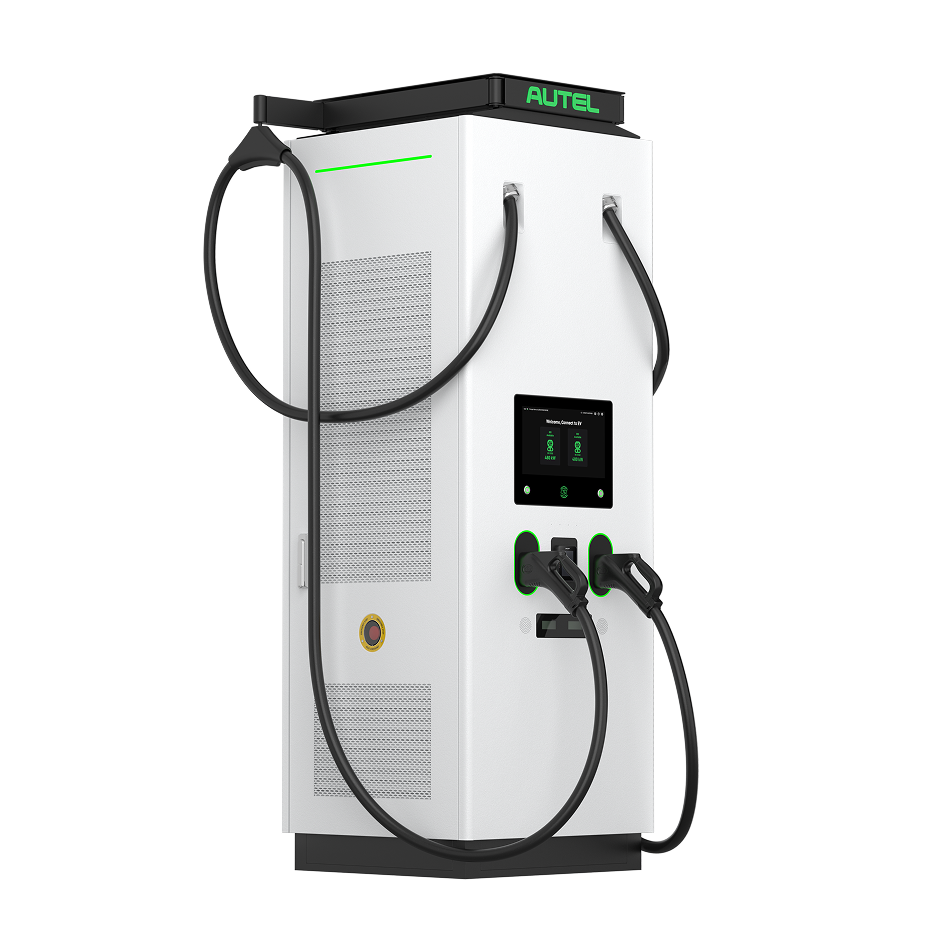

MaxiCharger DH600

  • Charging output: 300 kW-600 kW
  • Max. current: 650 A (liquid-cooled)
  • Voltage range: 150 V-1000 V
  • Peak Efficiency: Max. 97% E2E charging efficiency
  • Supports charging of two vehicles simultaneously
  • 15.6-inch touchscreen with tactile button (27-inch optional)
  • Reactive power compensation with adjustable power factor from –0.9 to +0.9





Ultimate Experience

MaxiCharger DH480
MaxiChargerMaxiCharger
  • DH600

    • Charging output: 300 kW-600 kW
    • Max. current: 650 A (liquid-cooled)
    • Voltage range: 150 V-1000 V
    • Peak Efficiency: Max. 97% E2E charging efficiency
    • Supports charging of two vehicles simultaneously
    • 15.6-inch touchscreen with tactile button (27-inch optional)
    • Reactive power compensation with adjustable power factor from –0.9 to +0.9





  • DH480

    • Charging output: 240 kW–480 kW
    • Max. current: 650 A (liquid-cooled)
    • Voltage range: 150 V-1000 V
    • Supports simultaneous charging of two vehicles
    • 15.6-inch touchscreen with tactile button

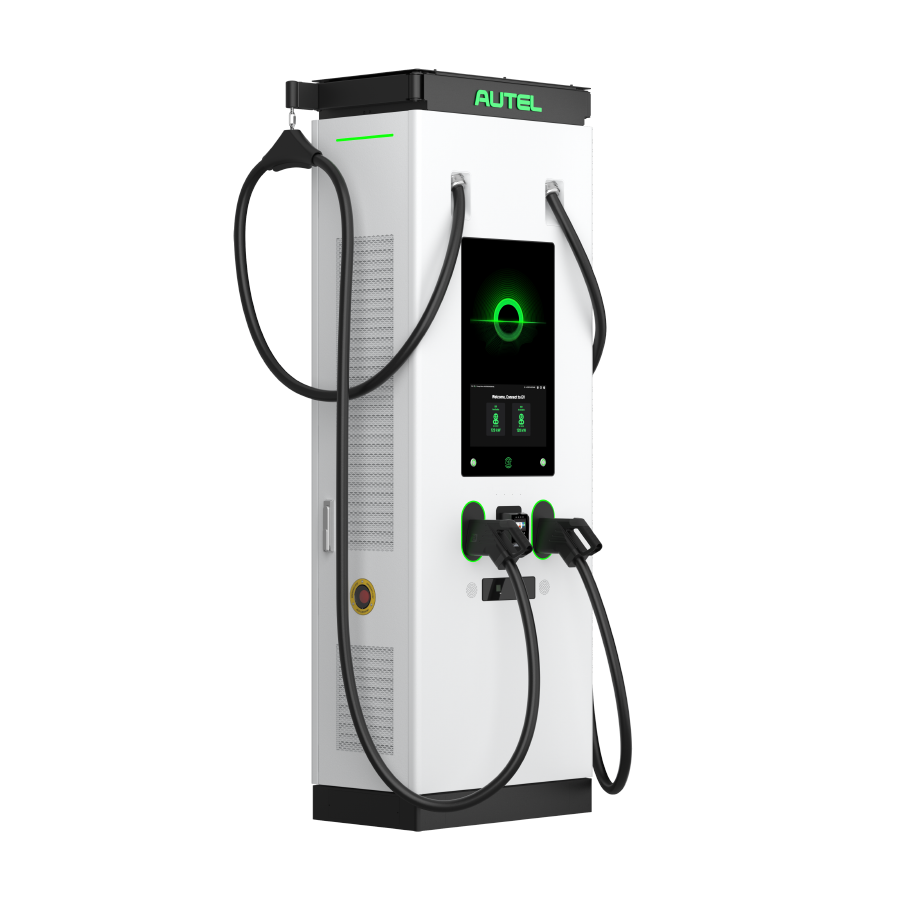

  • DH240

    • Charging output: 80 kW-240 kW
    • Charging current: 380 A-500 A
    • Voltage range: 150 V-1000 V
    • Supports simultaneous charging of two vehicles
    • 27-inch touchscreen with tactile button
  • DH120

    • Charging output: 100 kW-120 kW
    • Charging current: 200 A-300 A
    • Voltage range: 150 V-1000 V
    • Peak Efficiency: Max. 97% E2E charging efficiency
    • Supports charging of two vehicles simultaneously
    • 15.6-inch touchscreen with tactile button
    • Reactive power compensation with adjustable power factor from –0.9 to +0.9
    • Ultra Slim Design: Footprint < 0.16 m² with only 25 cm cabinet depth

Superior Performance

Efficient cable management improves usability, extends cable life, and optimizes space for reliable charging.

Superior Performance

MaxiChargerMaxiCharger
  • Quiet Power & Lasting Reliability

    Whisper-quiet below 55 dB* (45 dB in silent mode), delivering over 10 years of reliable, low-maintenance performance.

  • Optimized Cable Management

    Efficient cable management improves usability, extends cable life, and optimizes space for reliable charging.

  • Built for Extremes

    EcoCool Airflow and high corrosion resistance ensure stable performance in extreme environments.

Maximum Yield

Easy Commissioning & Operations

Activate devices in minutes with web pre-configuration, monitor charging status 24/7, and automatically generate service work orders to ensure operational efficiency.

Reliable Communication

Dual backup networks 5G/4G and Wi-Fi mesh ensure 99.9% uptime for seamless communication and uninterrupted charging, even in poor network conditions.

Compact & Powerful

The DH series delivers industry-leading power density in compact designs:

DH120: 0.16 m²,

DH240: 0.37 m²,

DH480: 0.61 m².

Maximum Yield

Easy Commissioning & Operations

Activate devices in minutes with web pre-configuration, monitor charging status 24/7, and automatically generate service work orders to ensure operational efficiency.

MaxiChargerMaxiCharger
Intelligent Charging Technology

AI-driven algorithms optimise EV recognition and power distribution, improving charging efficiency by up to 10%.

Dynamic Load Management

Dynamically allocates power for optimal, vehicle-specific charging efficiency.

Adaptive Load Management

Ensures safe, reliable power usage and consistent site operation.

Intelligent Charging Technology

AI-driven algorithms optimise EV recognition and power distribution, improving charging efficiency by up to 10%.

MaxiChargerMaxiCharger
