MaxiCharger DS600L
Liquid-cooled System
Ultimate Experience
Efficient Charging
Scalable Design
Reliable Uptime
Autel’s in-house liquid-cooled 60 kW and 120 kW power modules drive the DS600L with efficiency exceeding 97%, featuring AI-powered full-matrix scheduling for fast charging.
Ultimate Experience
Superior Performance
DS600L
DT1500
DT800
DT500
DT300

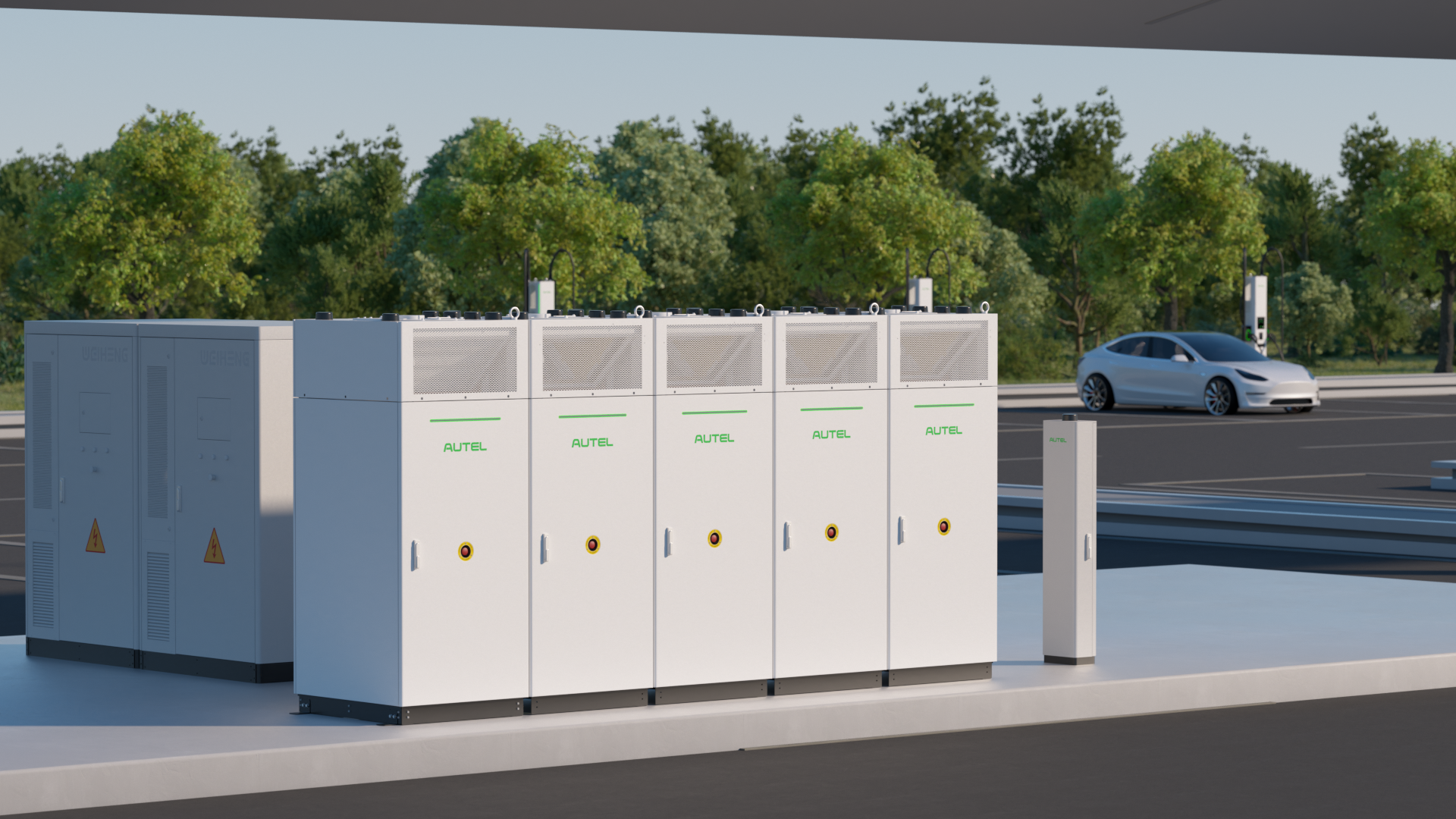

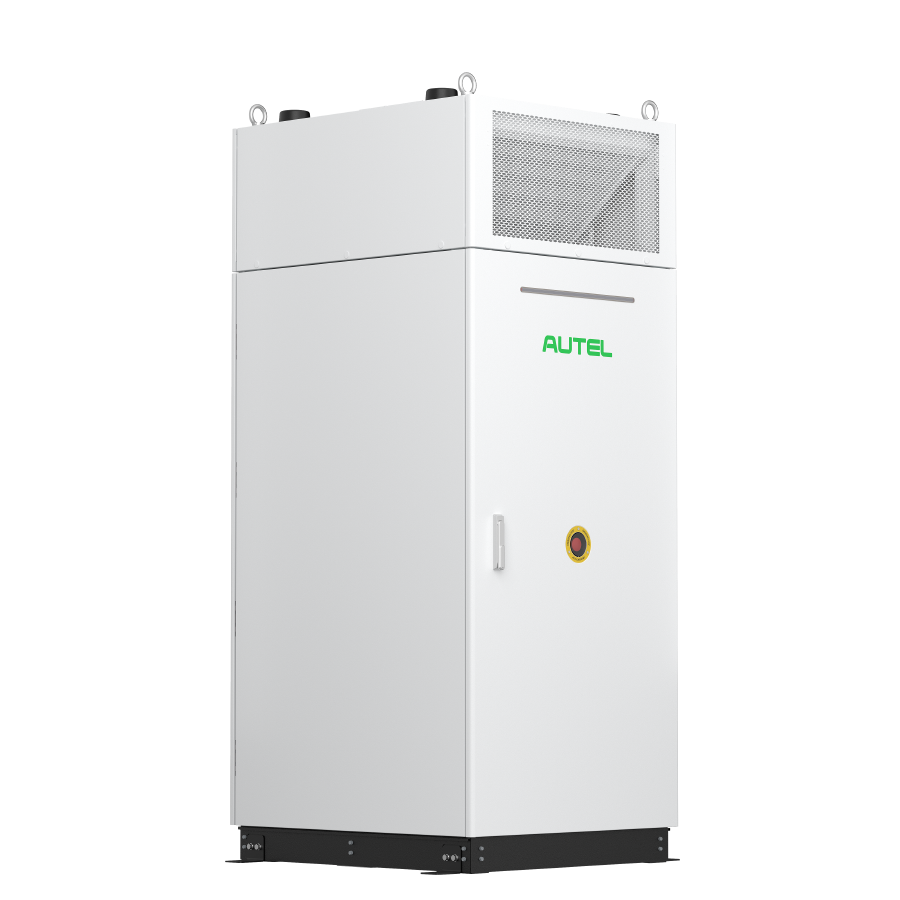

DS600L Power Cabinet
Powerful Output
A single cabinet delivers up to 600 kW output with 60 kW granularity and supports up to 10 charging points.
Reliable Quality
IP55 and C5-M protection rated for extreme conditions.
Enduring Design
15-year design life for lasting performance.
Broad System Compatibility
Compatible with Autel’s full range of charging dispensers.
Superior Performance
DS600L
Powerful Output
A single cabinet delivers up to 600 kW output with 60 kW granularity and supports up to 10 charging points.
Reliable Quality
IP55 and C5-M protection rated for extreme conditions.
Enduring Design
15-year design life for lasting performance.
Broad System Compatibility
Compatible with Autel’s full range of charging dispensers.

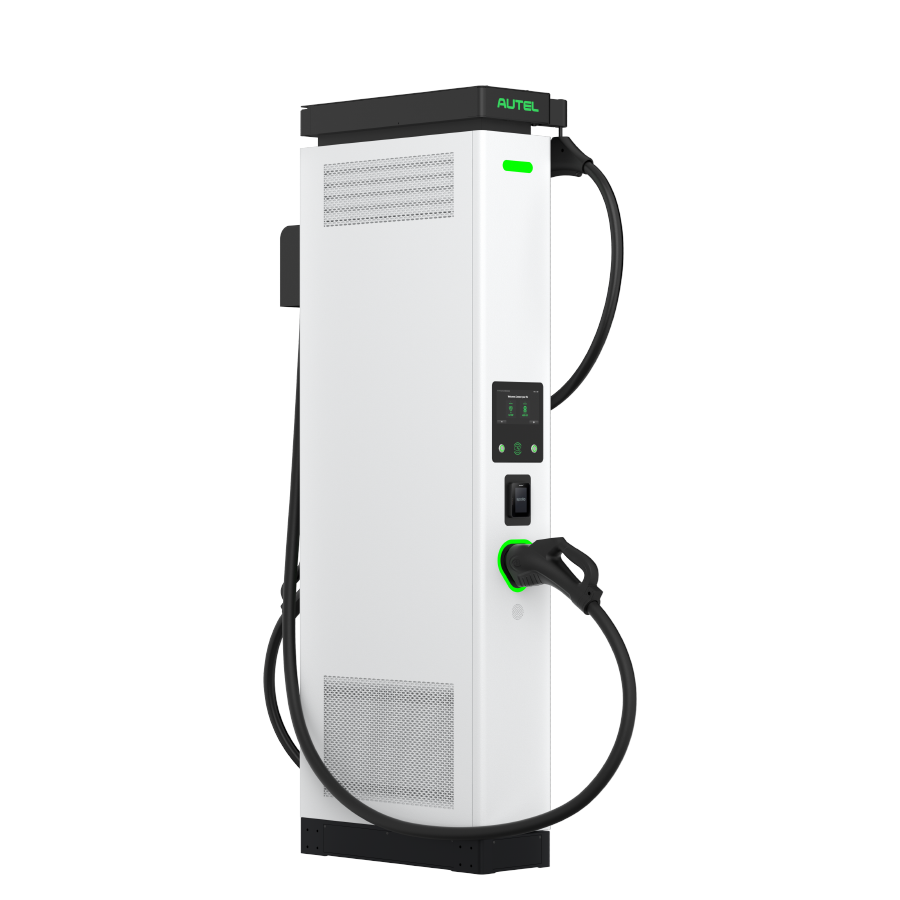

DT1500
- MCS output: 1.2 MW, maximum current 1500 A
- CCS output: 480 kW, maximum current 650 A
- MCS and CCS with liquid-cooled cables
- Supports simultaneous charging with two connectors
- Integrated cable management system

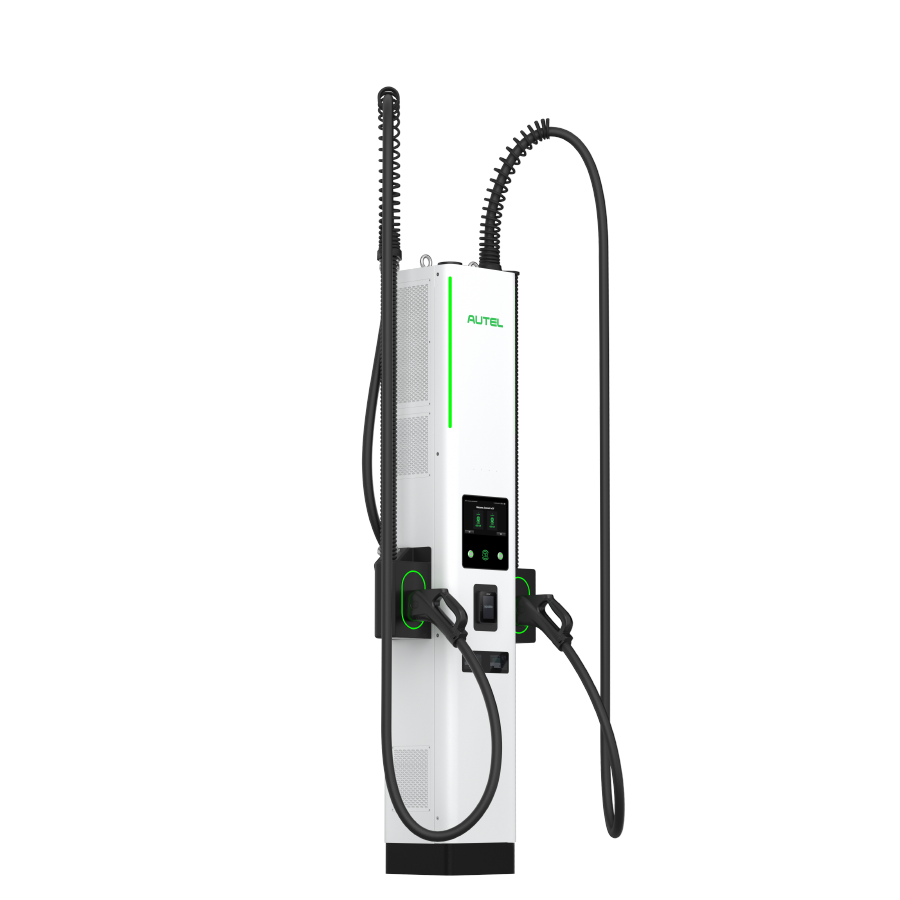

DT800
- Up to 780 A
- 2× CCS connectors
- Supports simultaneous charging with two connectors
- 0.1 m² compact footprint
- 8-inch LCD touch screen and tactile button
- Integrated cable management system
DT500
- Up to 500 A
- 2× CCS connectors
- Supports simultaneous charging with two connectors
- 0.1 m² compact footprint
- 8-inch LCD touch screen and tactile button
- Integrated cable management system
DT300
- Up to 300 A output
- 1× CCS connector
- 7.5–15 m cable management system (CMS)
- Parallel charging for up to 10 EVs per cabinet
- IP65 & IK10 protection
Maximum Yield
AI-powered full-matrix scheduling maximizes charging efficiency to drive revenue growth.

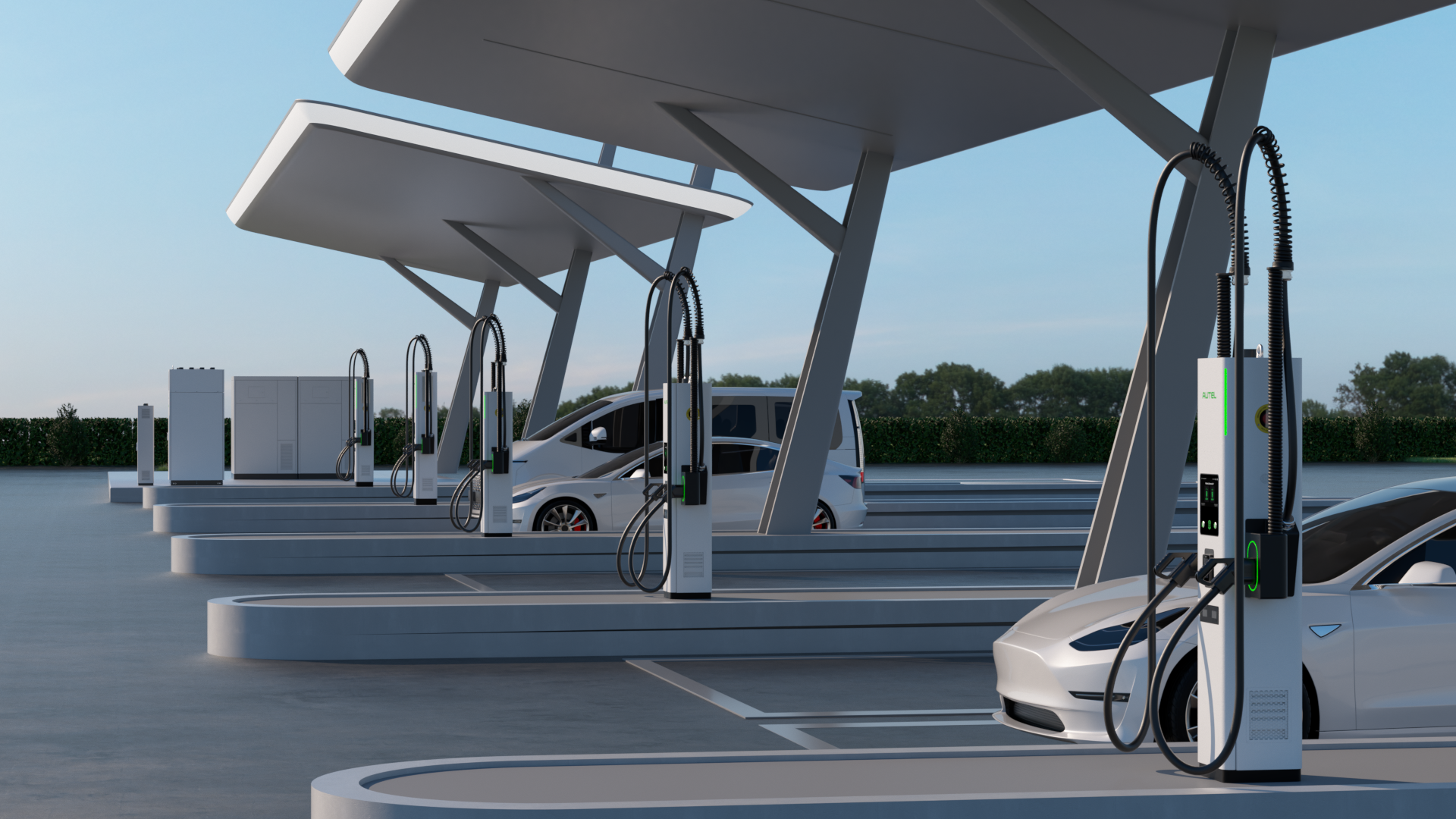

Single cabinets deliver 10 charging outputs, while a 3 MW cluster scales up to 50 outputs.
Autel’s integrated PV, ESS, and EVSE system can reduce energy costs by more than 30% through peak-valley arbitrage and demand charge optimization.
Maximum Yield
Efficient Revenue Boost
AI-powered full-matrix scheduling maximizes charging efficiency to drive revenue growth.
