MaxiCharger Fully Modular
All-in-One Charger
Ultimate Experience
Efficient Charging
Scalable Design
Easy Maintenance
In-house 50 kW air-cooled modules deliver over 97%* efficiency with reactive power compensation, ensuring reliable charging (DH240 efficiency: 96%).
Ultimate Experience
Ultimate Experience
DH600
DH480
DH240
DH120

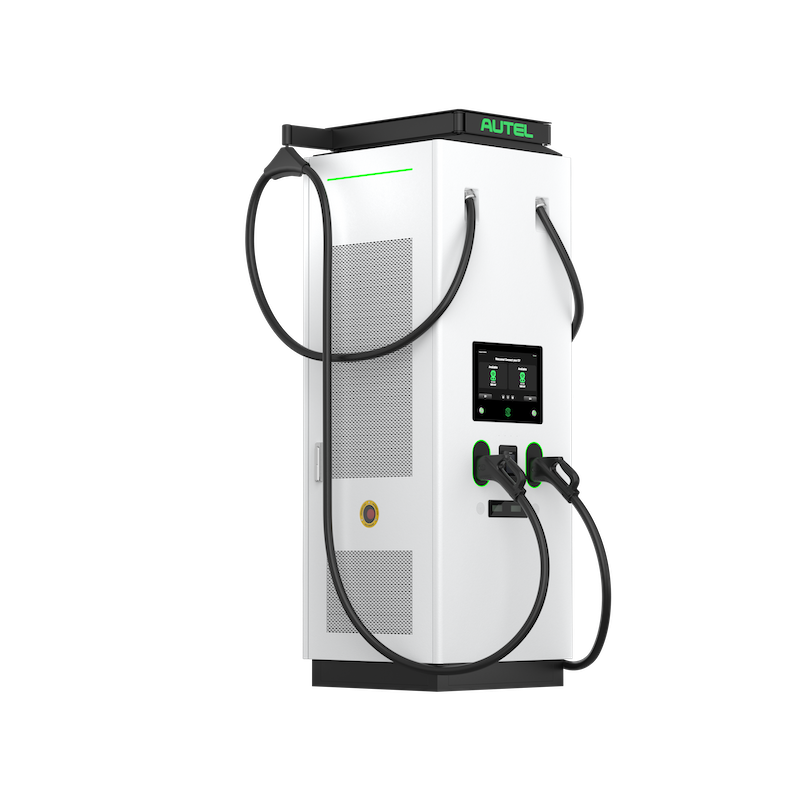

MaxiCharger DH600
- Charging output: 300 kW-600 kW
- Max. current: 650 A (liquid-cooled)
- Voltage range: 150 V-1000 V
- Peak Efficiency: Max. 97% E2E charging efficiency
- Supports charging of two vehicles simultaneously
- 15.6-inch touchscreen with tactile button (27-inch optional）
- Reactive power compensation with adjustable power factor from –0.9 to +0.9
Ultimate Experience
DH600
- Charging output: 300 kW-600 kW
- Max. current: 650 A (liquid-cooled)
- Voltage range: 150 V-1000 V
- Peak Efficiency: Max. 97% E2E charging efficiency
- Supports charging of two vehicles simultaneously
- 15.6-inch touchscreen with tactile button (27-inch optional）
- Reactive power compensation with adjustable power factor from –0.9 to +0.9
DH480
- Charging output: 240 kW–480 kW
- Max. current: 650 A (liquid-cooled)
- Voltage range: 150 V-1000 V
- Supports simultaneous charging of two vehicles
- 15.6-inch touchscreen with tactile button
DH240
- Charging output: 80 kW-240 kW
- Charging current: 380 A-500 A
- Voltage range: 150 V-1000 V
- Supports simultaneous charging of two vehicles
- 27-inch touchscreen with tactile button
DH120
- Charging output: 100 kW-120 kW
- Charging current: 200 A-300 A
- Voltage range: 150 V-1000 V
- Peak Efficiency: Max. 97% E2E charging efficiency
- Supports charging of two vehicles simultaneously
- 15.6-inch touchscreen with tactile button
- Reactive power compensation with adjustable power factor from –0.9 to +0.9
- Ultra Slim Design: Footprint < 0.16 m² with only 25 cm cabinet depth
Superior Performance
Efficient cable management improves usability, extends cable life, and optimizes space for reliable charging.
Superior Performance
Quiet Power & Lasting Reliability
Whisper-quiet below 55 dB* (45 dB in silent mode), delivering over 10 years of reliable, low-maintenance performance.
Optimized Cable Management
Efficient cable management improves usability, extends cable life, and optimizes space for reliable charging.
Built for Extremes
EcoCool Airflow and high corrosion resistance ensure stable performance in extreme environments.
Maximum Yield
Activate devices in minutes with web pre-configuration, monitor charging status 24/7, and automatically generate service work orders to ensure operational efficiency.
Dual backup networks 5G/4G and Wi-Fi mesh ensure 99.9% uptime for seamless communication and uninterrupted charging, even in poor network conditions.
The DH series delivers industry-leading power density in compact designs:
DH120: 0.16 m²,
DH240: 0.37 m²,
DH480: 0.61 m².
Maximum Yield
AI-driven algorithms optimise EV recognition and power distribution, improving charging efficiency by up to 10%.
Dynamically allocates power for optimal, vehicle-specific charging efficiency.
Ensures safe, reliable power usage and consistent site operation.
